Signal Gerätedose Nachrüstung

Name: Signal Gerätedose Nachrüstung
Brand: EMDS
SKU: 700013
Price: 205.0 EUR
Availability: InStock

Store / Elektronik für Land u. Baumaschinen

€205,00

Excl. shipping

Size

Standard Set

E2B-M12-NPN-SET ( +€75,00 )

In stock

Product Details

Marke: EMDS

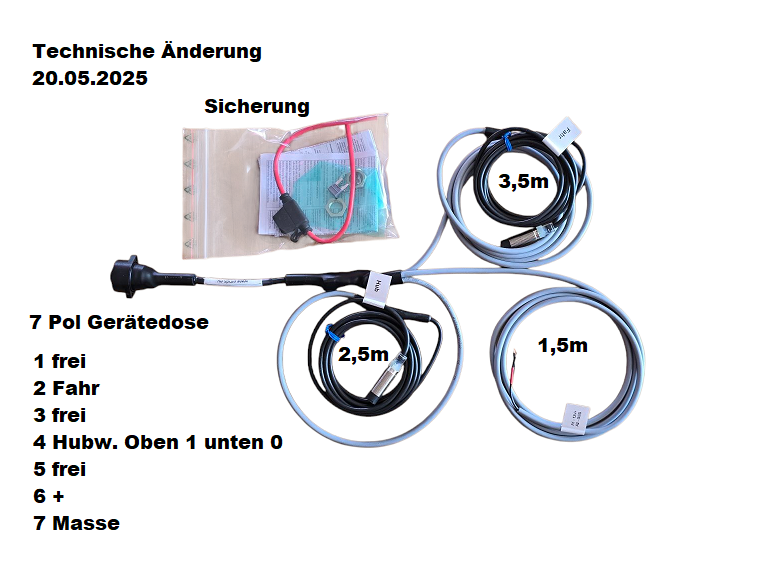

Retrofit kit for signal unit box, 1x sensor on e.g. propeller shaft, (optional: 1x lift mechanism sensor) Unit box with mounting flange and power supply. (Gear wheel and metal plate not included; these must be custom-made to fit the vehicle where possible and as circumstances permit!!!) Drive signal 0–12 V square wave, lift mechanism 0 V–12 V ground, switching type for JD Displays GS and similar. Technical data: 10–30 V input = output

!!!Technical change 09/2026: Signal amplification now included; item 700005 is therefore no longer available as an additional option!!!

!!!Please note: when mounted on the cardan shaft, there may be too few pulses per metre for the receiving control unit;

when connected directly to the gear wheel (700007 set), significantly more pulses are supplied!!!! The APV can be adjusted to two ‘from-to’ ranges!
