RS 73-15 camera system

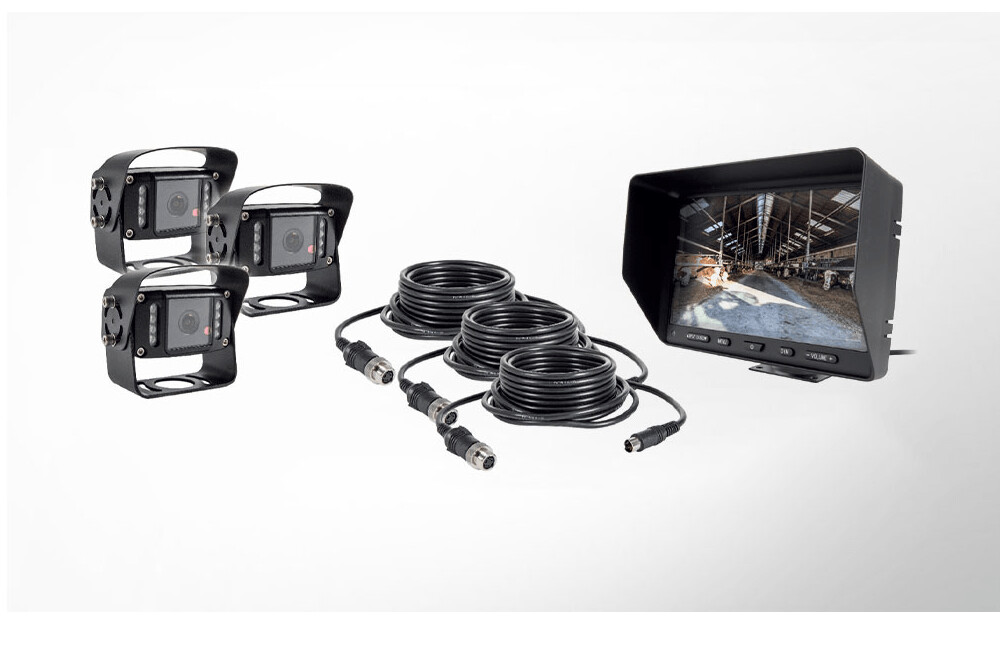

The Rosho RS 73-15 camera-monitor system comprises a 7″ LCM 703T monitor, 2x RK1405M cameras, 1x RK 1415M camera, 2x 20-metre and 1x 15-metre camera cables. The robust housing is ideally suited for use in lorries, agricultural vehicles and motor vehicles operating outdoors.

The 7-inch TFT-LCD monitor LCM 703T is a display for showing images from up to three cameras or video sources, which can be displayed individually or switched between either automatically or manually. The monitor’s robust, ultra-slim and elegant housing blends seamlessly into the existing vehicle and is therefore ideal for use in lorries, agricultural or construction vehicles. Thanks to its robust construction, the monitor meets the very high IP69k protection rating for water and dust resistance and can even withstand cleaning with a high-pressure washer. The system provides the driver with a comprehensive view of the areas behind, in front of and to the sides of the vehicle. This also covers the vehicle’s ‘blind spot’.

To ensure the quality of our products, the RS 73-15 camera-monitor system also undergoes a comprehensive and rigorous quality assurance process at every key stage of production, including highly precise individual unit testing.

MONITOR LCM 703T

Protection class: IP 64

Camera connections: 3

7” colour TFT LCD

Resolution (W x H) 800 x 480

Video signal: PAL / NTSC

Contrast ratio: 450:1

Camera/video inputs: 3x

Operating temperature range: -20°C to +75 °C

Power supply: 12/24 VDC

Dimensions: 186 mm x 130 mm x 25 mm (excluding bracket)

Weight 480g

Camera RK 14XX series

Field of view: 78° / 130° / 150°

Protection class: IP 69K

Connection cable: MiniDIN

1/3” CCD • Video format PAL

700 TV lines

0.01 lux (0 lux with IR LED on)

IP69K

Heater

Operating temperature range: -30°C to 70 °C

Power supply: 12/24 VDC

Dimensions: 76 mm x 64 mm x 42 mm (excluding sun visor)

Certificates

E-mark

ECE 118

ES-95400-10 (analogue to DIN EN ISO 9227)

IEC 60068-1:2013 / DIN EN 60068-1

VDE 0468-1:2015-09

IEC 60068-2-11:1981

DIN EN 60068-2-11:2000-02
