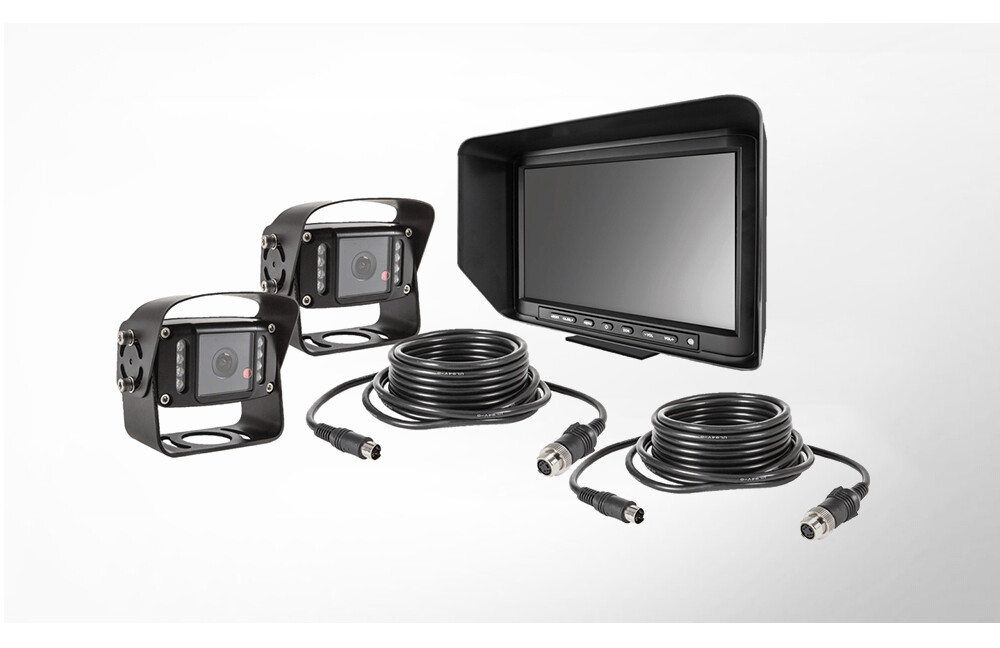

RS 100-10 camera system

The 7-inch TFT-LCD monitor LCM 703T is a display for showing images from up to three cameras or video sources, which can be displayed individually or switched between either automatically or manually. The monitor’s robust, ultra-slim and elegant housing blends seamlessly into the existing vehicle and is therefore ideally suited for versatile use in vehicles. The system enables the driver to have a comprehensive view of the areas behind, in front of and to the sides of the vehicle. This also covers the vehicle’s ‘blind spot’.

To ensure the quality of our products, the RS 100-11 camera-monitor system also undergoes a comprehensive and rigorous quality assurance process at every key stage of production, including highly precise individual unit testing.

MONITOR LCM 703T

Protection class: IP 64

Camera connections: 3

7” colour TFT LCD

Resolution (W x H) 800 x 480

Video signal: PAL / NTSC

Contrast ratio: 450:1

Camera/video inputs: 3x

Operating temperature range: -20°C to +75 °C

Power supply: 12/24 VDC

Dimensions: 186 mm x 130 mm x 25 mm (excluding bracket)

Weight 480g

Camera RK 1100M

Field of view: 145°

Protection class: IP 69K

Connection cable: MiniDIN

1/3” CCD

Video format PAL

Field of view 145°(D)

650 TV lines

0 lux with IR LED on

IP69K

Operating temperature range: -40°C to 80 °C

Power supply: 12 VDC ±10%

Dimensions: 65 mm x 88.5 mm x 53 mm

Cable length: 1 m

Includes shutter box and 20 m camera cable

Certificates

E-mark
