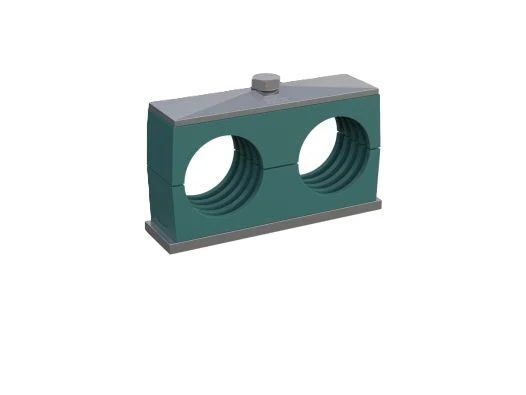

Stauf pipe clamps RS D I 8 Size: I D Pipe diameter (mm): 8 a1 (mm): 20 a2 (mm): 37 A3 (mm): 36 h1 (mm): 18.5 H2 (mm): 27 H3 (mm): 43
Materials Clamp body: Polypropylene Ribbed inner surface with preload (PA) Materials & surfaces of metal parts: Steel St 37 Chrome(VI)-free coating Standard according to DIN 3015, Part 3 Temperature range: -30°C to +120°C Resistance to: petrol, mineral oils, alcohols, other oils, seawater Conditional resistance to: weak acids, alkalis (Width = 30 mm)
