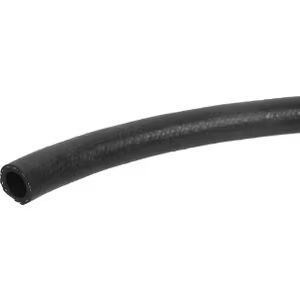

Hydraulic hose 3/4 inch (SW)
In stock
Product Details
Areas of application
Low-pressure applications
Return lines in fuel systems
Systems for limiting evaporative emissions
Ventilation
Oil pan ventilation
Passenger cars
Industrial vehicles
Properties
Specially developed for fuel circuits in passenger cars and industrial vehicles
No discolouration of the fuel
Stretchable synthetic textile inserts
Technical information
Not suitable for fuel injection systems
Type
Fuel hose
Hose inner diameter
20 mm
Hose inner diameter
3/4 inch
Outer hose diameter
28.7 mm
Max. operating pressure
2 bar
Burst pressure
12 bar
Max. vacuum
0.33 bar
Medium
Fuel
Max. operating temperature
125 °C
Min. operating temperature
-40 °C
Outer material
Nitrile rubber [NBR]
Inner material
Nitrile rubber [NBR]
Reinforcement type
Braided
Number of reinforcement layers
1
Reinforcement material
Textile
Standard
SAE 30 R6
SAE 30 R7
