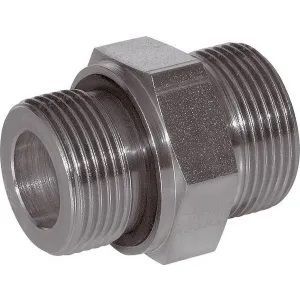

Hydr screw-in connector 12L M16
In stock
Product Details
Unit
per piece
Advantages
Lower risk of leaks
Product details
Direct connection to a metric hose fitting or pre-assembled coupling - Multiple corrosion resistance - Hydraulic hose
Hydraulic lines - Viton seal available on request
Advantages
Low risk of leakage
Shape
Straight
Type of connection no. 1
Cutting ring
Type of connection no. 1 - External/internal thread
Male
Diameter of connection 1
12 mm
Thread diameter of connection no. 1
M18
Thread diameter of connection no. 1
16 mm
iThread length connection no. 1
12 mm
Thread pitch connection no. 1
1.50 mm
Thread type connection no. 1
Metric
d7Hexagon size connection no. 1
21.9 mm
SW1Wrench size connection no. 1
22.0 mm
Connection type no. 2
Sealing ring
Connection type No. 2 - external/internal thread
Male
Connection thread diameter No. 2
M16
Connection thread pitch No. 2
1.50 mm
Connection thread type No. 2
Metric
S2Wrench size cutting ring side
22.0 mm
L2Distance between connection centre and end
27 mm
L1Distance between connection No. 2 centre and end
12.5 mm
d1Pipe diameter
12 mm
DIN standard
2353
228
3852
2401
ISO standard
228
dxInner diameter
9 mm
lgLength
31.5 mm
Surface treatment
Zinc
Nickel
Max. operating pressure
400 bar
Seal material
Nitrile rubber [NBR]
Series
12L
Max. tightening torque
70 N·m
