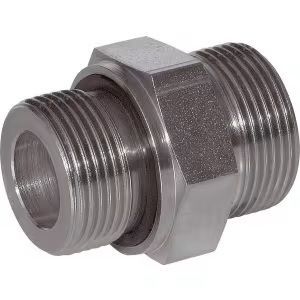

Hydraulic screw-in connector 12L M14
In stock
Product Details
Unit
per piece
Advantages
Lower risk of leaks
Product details
Direct connection to a metric hose fitting or pre-assembled coupling - Multiple corrosion resistance - Hydraulic hose
Hydraulic lines - Viton seal available on request
Advantages
Low risk of leaks
Shape
Straight
Type of connection no. 1
Cutting ring
Type of connection no. 1 - External/internal thread
Male
Diameter of connection 1
12 mm
Thread diameter of connection no. 1
M18
Thread diameter of connection no. 1
14 mm
Thread length of connection no. 1
12 mm
Thread pitch of connection no. 1
1.50 mm
Thread type connection no. 1
Metric
Hexagon size connection no. 1
18.9 mm
SW1 Wrench size connection no. 1
22.0 mm
Connection type no. 2
Sealing ring
Connection type no. 2 - External/internal thread
Male
Connection thread diameter No. 2
M14
Connection thread pitch No. 2
1.50 mm
Connection thread type No. 2
Metric
S2Wrench size cutting ring side
19.0 mm
d1Pipe diameter
12 mm
DIN standard
2353
228
3852
2401
ISO standard
228
dxInternal diameter
7 mm
lgLength
30 mm
Surface treatment
Zinc
Nickel
Max. operating pressure
400 bar
Seal material
Nitrile rubber [NBR]
Series
12L
Max. tightening torque
50 N·m
