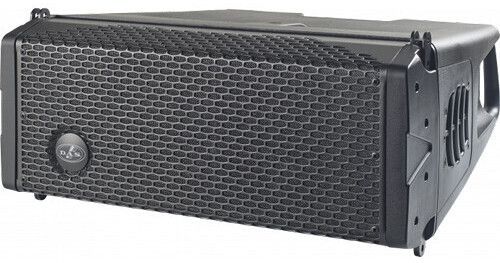

DAS Audio PA Line Array Speaker Event 26A – Second-hand/demo model
+5
+4
+3
+2

DAS Audio PA Line Array Speaker Event 26A – Second-hand/demo model

Store / Veranstaltungstechnik Ton Licht Effekte etc. / Komplettanlagen, Bundle, B-Ware, Vorführung, Gebraucht
€1.050,00
Excl.  shipping
In stock
Product Details

Price on request!

Brand: DAS Audio
Note: Please enquire about bulk pricing!!
The speakers have been thoroughly inspected and tested; they are in top condition, like new, and in their original packaging!!!!

The EVENT-26A is an active 2-way line array with a symmetrical design, delivering an extremely impressive performance whilst being very easy to use.

The polypropylene enclosure is not only aesthetically pleasing but also ensures low weight whilst being robust and durable. The comprehensive range of accessories makes the EVENT-26A an ideal choice for a wide variety of mobile and permanently installed applications.

The speaker configuration comprises two DAS 6MI 6-inch mid-bass drivers with 1.5-inch VCDs, combined with the DAS M-60 1-inch driver featuring a 1.75-inch VCD. The 6-inch drivers, arranged in a V-shape relative to one another, combined with the optimised HF horn/phase plug design, enable very homogeneous horizontal dispersion down to 300 Hz. The M-60 pressure chamber driver acts on a specially developed waveguide, providing perfect coupling and uniform horizontal dispersion.
The system is powered by the integrated bi-amp digital power amplifier with 800W peak, which is controlled via the integrated 24-bit DSP and, in addition to crossover and limiter functions, EQ and delay, also implements powerful FIR filtering for constant phase response. As standard, the connections are protected by the integrated weather protection.
The integrated, high-quality 3-point flying hardware features our Fast-Set-Splay system, which allows the angle to be preset (10° in 1° increments) whilst the system is in transport mode, enabling effortless and very quick rigging. The flying hardware allows groundstacks only via the compact JP-EV26 adapter plate directly on the EVENT-115A system flying bass. The special AXS-EV26 ground stack frame is available for stacking onto other subwoofers. The optional PL-EV26S steel transport trolley accommodates up to 6 EVENT26-A units; matching protective transport covers are available for 4 or 6 units.

Performance
Frequency response (-10 dB) 76 Hz – 19 kHz
Horizontal dispersion angle (-6 dB) 100º
Vertical dispersion Depends on the horizontal dispersion angle
Maximum linear sound pressure level1 133 dB
Maximum sound pressure level2 137 dB
1. Measured maximum linear sound pressure level at a distance of 1 m in accordance with the AES75 standard, using M-noise with a crest factor of 18 dB.
2. Measured maximum sound pressure level at a distance of 1 m using burst noise.

Electronics and connections
Rated amplifier power (continuous) 400 W
Rated amplifier power (peak) 800 W
Input type Balanced
Input impedance 20 kΩ
Input sensitivity 6.2 V (+18 dBu)
Audio input connector 1 x XLR socket
Audio loop-through connector 1 x XLR plug
Mains connection powerCON NAC3MPA
Mains output powerCON NAC3MPB
Current consumption 230 V / 115 V 0.8 A/1.6 A
Enclosure
Enclosure construction: Polypropylene
Enclosure shape: Trapezoidal
Mounting: Captive rigging system
Colour: Black
Dimensions (H x W x D): 225 x 480 x 500 mm
8.9 x 18.9 x 19.1 in
Net weight 16.5 kg (36.4 lb)
Components
Woofer 6MI
Tweeter M-60
Shipping
Carton dimensions (H x W x D) 565 x 565 x 290 mm
22.2 x 22.2 x 11.4 in
Shipping weight 20.0 kg (44.0 lb)
The speakers can be viewed and collected at 27711 Osterholz-Scharmbeck. If you have any queries, please do not hesitate to contact us on 04791 8077330.
